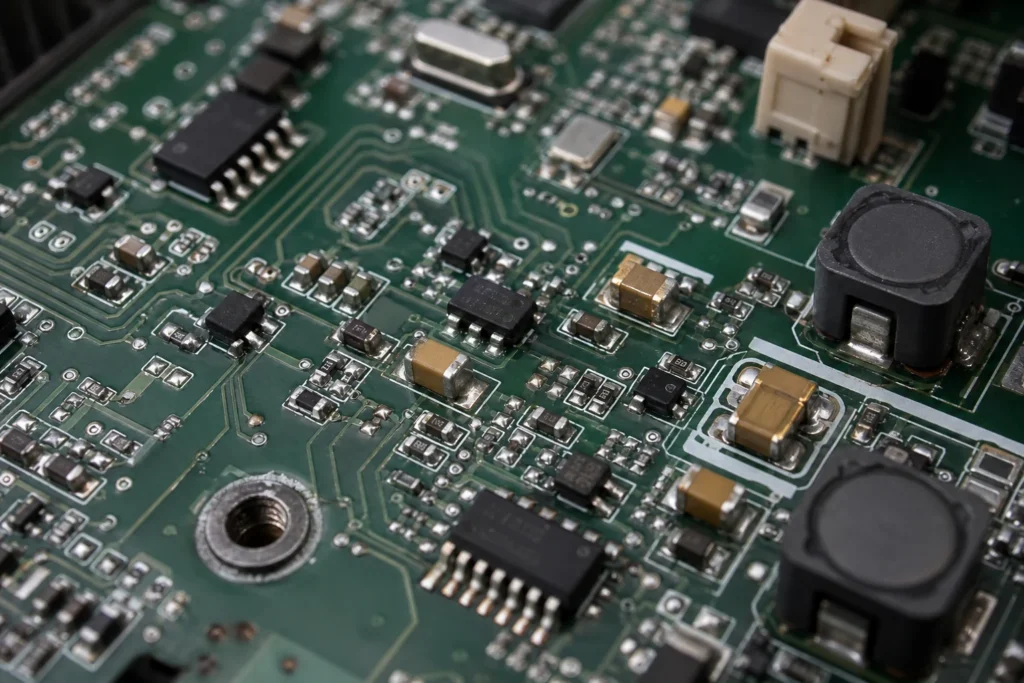

Surface Mount Resistors Fail Quietly When the Package Choice Is Wrong

A surface mount resistor looks simple on the BOM, but it often causes quiet production problems because the risk is spread across several teams. The schematic may only call for a resistance value and tolerance. The layout then decides pad geometry and copper balance. Purchasing may approve an alternate package family. Assembly tunes the profile around much larger thermal masses. Test engineering finally discovers that a measurement point drifts under load or that a shunt value was selected with the wrong pulse assumption. By then the resistor itself still looks harmless, which is exactly why it gets underestimated.

That is the practical difference between learning what a chip resistor is and choosing one correctly for a real PCB assembly. A surface mount resistor is not just a smaller replacement for a through-hole part. Its package size, film technology, pulse capability, temperature coefficient, and solder-joint geometry all affect whether the circuit stays stable in production and service. On dense boards, the wrong resistor choice can produce heat drift, rework difficulty, tombstoning, cracked terminations, or test results that only fail after the board leaves the bench.

This guide focuses on that engineering reality. If you only need a broad introduction to assembly styles, ReversePCB already covers through-hole versus surface mount techniques. Here the question is narrower and more useful: how do you choose and place a surface mount resistor so the board is still easy to build, inspect, test, and repair?

What a surface mount resistor changes in a real assembly

The package removes lead length and supports dense placement, which helps parasitics and routing flexibility, but it also shifts more responsibility onto the land pattern and the solder joints. A through-hole resistor has compliance in its leads and some forgiveness during handling. A chip resistor depends far more on pad symmetry, paste volume, board flex, and how evenly the two terminations wet during reflow. That is why a resistor that looks electrically correct can still be a manufacturing problem.

The smaller the package, the more the mechanical margin shrinks. A 1206 resistor can tolerate handling and rework abuse that would destroy a 0201 part. On the other hand, a larger package can create its own issues if the copper under each terminal is badly unbalanced or if the thermal environment drives one side to wet faster than the other. In practice, resistor reliability is tied to both electrical stress and assembly geometry, not just the printed resistance value.

Choose the package by more than available board space

Engineers often start with package size because the placement area is easy to see. That is not wrong, but it is incomplete. The right package also depends on power dissipation, pulse loading, inspection access, and whether rework will ever be realistic in the field. A compact wearable board may justify 0402 parts across most of the design. A power-monitoring or automotive-adjacent board may need larger packages simply because thermal rise and service stress are less forgiving.

Before freezing the package, check four things. First, calculate steady-state dissipation with real derating, not nominal room-temperature power alone. Second, examine pulse or surge energy if the resistor sees inrush, snubber duty, or discharge events. Third, confirm the package can still be inspected and replaced with the tools your assembly partner actually uses. Fourth, look at copper balance around the pads. A resistor that sits between a thin signal trace and a broad copper pour may reflow asymmetrically even when the datasheet rating looks generous.

For measurement and feedback networks, package size also affects noise pickup and temperature rise near sensitive IC pins. For current-sense work, the wrong package can create thermal EMF issues, excess self-heating, or Kelvin-routing compromises. In other words, package selection is partly an electrical calculation and partly a DFM decision.

Film type, tolerance, and TCR decide whether the circuit drifts

Many surface mount resistors in mainstream digital designs are thick-film parts because they are economical and broadly available. That is usually fine for pull-ups, dividers with relaxed error budgets, and general logic conditioning. It becomes less fine when the resistor sits in an analog gain path, a reference network, a current-sense position, or a timing circuit that is expected to behave the same across production lots and ambient changes.

In those cases, tolerance is only the starting point. Temperature coefficient matters because a circuit that passes at 25 degrees Celsius may shift materially when the local board temperature rises near a regulator, MOSFET, or LED driver. Noise characteristics and long-term stability also matter in precision work. When engineers default to “1% is enough” without checking drift sources, the bench often looks clean while the installed product tells a different story.

A practical rule is to reserve generic thick-film parts for non-critical positions and explicitly call out metal-film, anti-sulfur, pulse-rated, or dedicated current-sense resistors where the failure mode justifies it. Doing so also helps purchasing avoid alternates that meet the nominal ohms value but miss the real operating constraint.

Common assembly failures are usually geometric, not mysterious

Tombstoning and skew

Small chip resistors tombstone when one end wets and lifts before the other side catches up. Paste imbalance, copper asymmetry, and profile behavior all contribute. The fix is rarely one variable in isolation. Review stencil aperture balance, local copper connection, and whether one pad is tied directly into a heat-spreading region. A simple pad edit or thermal-relief change can do more than endlessly retuning the oven.

Cracked terminations after depaneling or rework

Resistors near board edges, mounting holes, or connector insertion zones are vulnerable to flex cracking. The board may pass ICT and still fail later because the ceramic body or termination was stressed after soldering. If the placement area sees mechanical load, moving the resistor or rotating it relative to the bend axis may be safer than increasing package size alone.

Cold-looking joints that are really wetting-balance problems

When the solder fillets look uneven, engineers sometimes blame paste quality first. Sometimes the real problem is pad geometry or a local thermal sink. ReversePCB’s guide to cold solder joints is useful here because visual appearance is only one clue. X-ray is usually unnecessary for ordinary chip resistors, but AOI criteria and cross-section evidence become relevant when the same location repeats across lots.

Layout checkpoints that prevent resistor-related escapes

The footprint should follow the package recommendation unless there is a documented reason to adjust it. Oversized pads make hand rework easier but can worsen solder-volume imbalance and skew. Undersized pads reduce wetting margin and can create weak joints that fail under thermal cycling. Pad-to-mask relationships also matter because a crowded resistor bank can trap solder behavior that looks fine in CAD but behaves poorly in stencil printing.

Placement orientation deserves attention too. If one end of the resistor consistently faces the hotter side of the local copper environment, repeated asymmetry becomes a process issue rather than a one-off defect. In dense analog or RF areas, keep resistor networks arranged so probing and rework remain possible. A board that is theoretically compact but impossible to debug is usually not well designed.

It is also worth checking whether adjacent components create misleading thermal assumptions. A resistor parked beside a hot regulator, power inductor, or LED string may meet its own rating while still shifting the circuit because the local ambient on the board is much higher than the room. That is the sort of error that survives simulation but fails in production soak testing.

Specification discipline keeps procurement from breaking the design

If the resistor matters, the BOM should say why it matters. Include package, tolerance, power rating, TCR where relevant, and special characteristics such as anti-sulfur construction, pulse handling, or current-sense style. If alternates are allowed, define the non-negotiable attributes. Otherwise an approved substitute may preserve cost while quietly changing drift, surge margin, or solderability.

This is especially important in multi-board products where several teams treat “10k 1% resistor” as interchangeable. The more generic the line item looks, the easier it is for the actual engineering requirement to disappear during sourcing. Resistor selection only stays simple when the application is simple.

When a surface mount resistor is the wrong answer

There are still cases where a through-hole resistor or a larger specialty package is the better engineering choice. High-energy discharge paths, field-repairable industrial equipment, and circuits that face repeated connector or harness abuse may not benefit from the smallest SMT footprint available. Likewise, if a resistor must be manually replaced in low-volume service work, a miniature package can raise repair cost more than it saves in layout area.

That does not mean SMT should be avoided. It means package strategy should match the real product lifecycle. The right resistor is the one that meets the electrical target and survives fabrication, test, shipment, and repair with the least hidden risk.

Conclusion

Surface mount resistors are only easy when the circuit position is non-critical and the assembly environment is forgiving. Once heat, drift, pulse stress, board flex, or inspection access matters, resistor choice becomes a cross-functional decision. Electrical rating, footprint geometry, copper balance, and sourcing rules all shape the result.

If you want fewer surprises, specify the resistor for the actual failure mode instead of the nominal resistance alone. That means checking derating honestly, protecting critical positions from weak alternates, and reviewing the footprint like a manufacturing feature rather than an afterthought. Small parts still create large problems when the board depends on them.
