STM32F429 Microcontroller: Pinout, Block Diagram, Specification, MCU Decryption

STM32F429 Series Microcontroller

About STM32F429 MCU

At the end of 2012, ST launched the high-performance STM32F429/39 series of chips. Compared with STM32F407, the new functions of the STM32F429/39 series include: SDRAM controller, TFTLCD controller and ST Chrome-ART Accelerator to accelerate graphics processing performance, and Increasing the main frequency to 180Mhz greatly improves the performance of the graphical interface.

STM32F429 Pin Configuration

The pin configurations of STM32F429 include: LQFP100, LQFP144, LQFP176, LQFP208.

STM32F429 LQFP100 Pinout

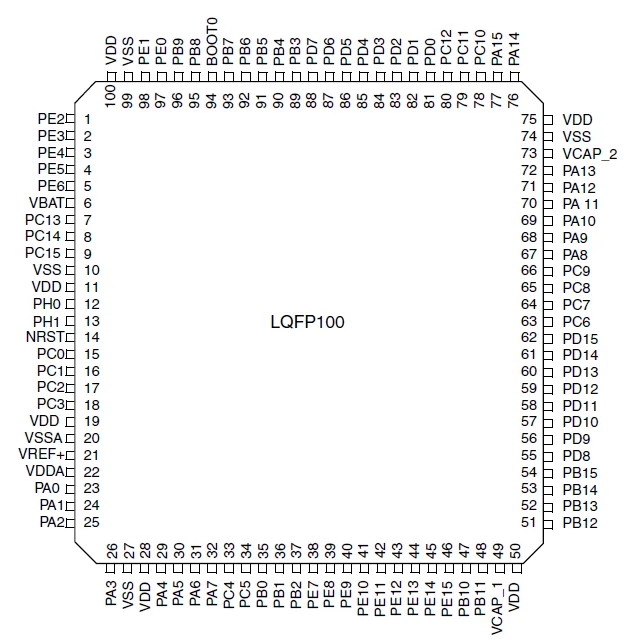

STM32F429 LQFP100 Pinout

STM32F429 Block Diagram

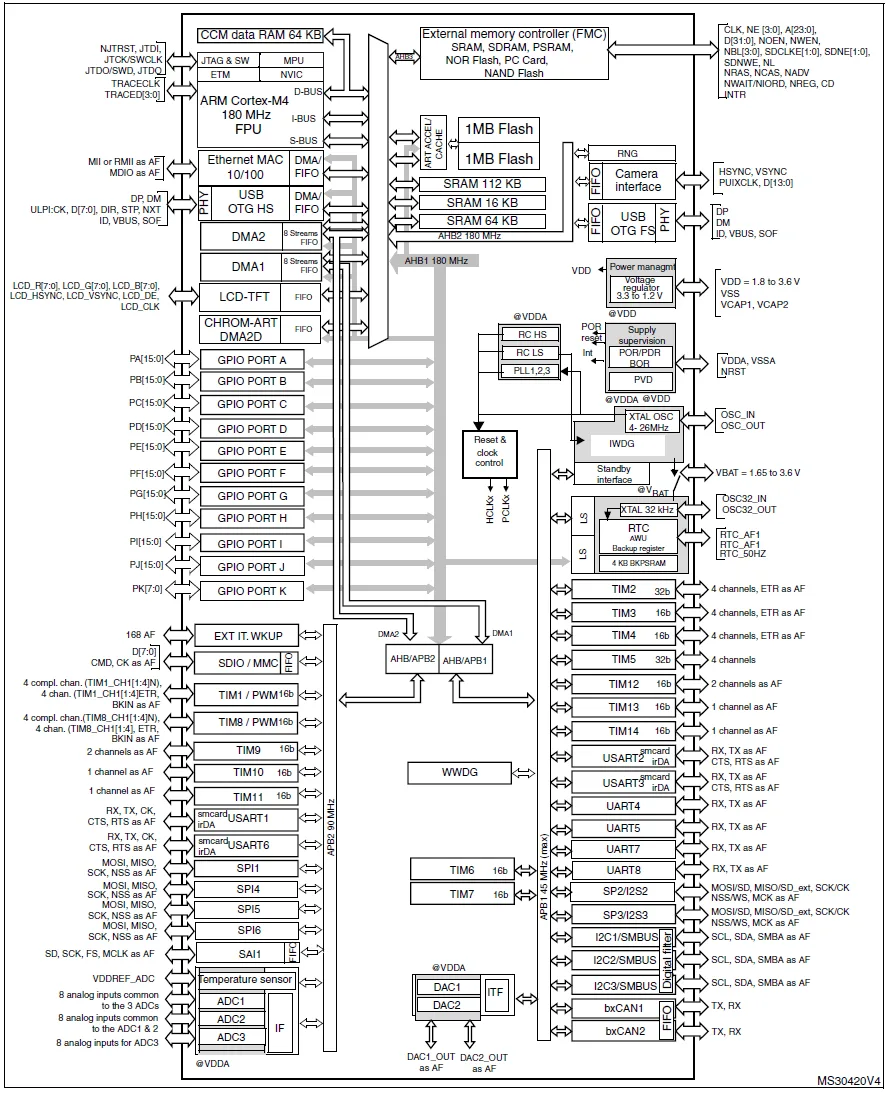

STM32F429 Block Diagram
STM32F429 Block Diagram

STM32F429 Package

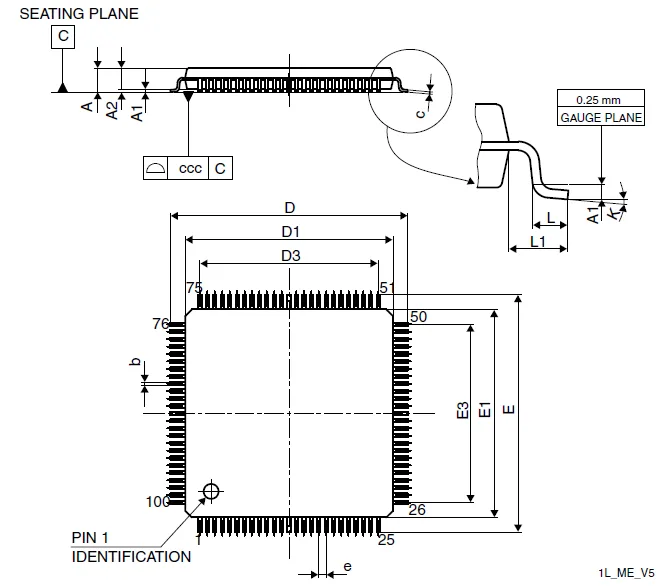

STM32F429 LQFP100 Package

STM32F429 Vs STM32F1

More Advanced Kernel

STM32F429 uses the Cortex M4 core with FPU and DSP instruction set, while STM32F1 uses the Cortex M3 core without FPU and DSP instruction set.

More Resources

STM32F429 has up to 256KB of on-chip SRAM, supports SDRAM, with TFTLCD controller, with graphics accelerator (Chorme ART), with camera interface (DCMI), encryption processor (CRYP), USB high-speed OTG, true random number generator, OTP memory, etc.

Enhanced Peripheral Functions

For the same peripheral part, STM32F429 has faster analog-to-digital conversion speed, lower ADC/DAC operating voltage, 32-bit timer, real-time clock (RTC) with calendar function, greatly enhanced IO multiplexing function, 4K words 4-inch battery-backed SRAM and faster USART and SPI communication speeds.

Higher Performance

The maximum operating frequency of STM32F429 can reach 180Mhz, while STM32F1 can only reach 72Mhz; STM32F429 has an ART adaptive real-time accelerator, which can achieve performance equivalent to FLASH’s zero wait cycle. STM32F1 requires a waiting cycle; STM32F429’s FSMC uses a 32-bit multiple AHB bus matrix, which significantly improves the bus access speed compared to STM32F1.

Lower Power Consumption

The power consumption of STM32F429xx is: 208uA/Mhz, while the STM32F1 is up to 421uA/Mhz.


The STM32F429IGT6 device contains high-speed embedded memory (up to 2mbytes of Flash, up to 256kbytes of SRAM), up to 4kbytes of backup SRAM, and a wide range of enhanced I/O and peripheral connections to two APB buses, two AHB buses and a 32-bit Multi-AHB bus matrix. All devices provide 3 12-bit ADCs, 2 DACs, a low-power RTC, 12 general-purpose 16-bit timers, including two PWM timers for motor control, and two general-purpose 32-bit timers. A true random number generator (RNG). They also feature standard and advanced communication interfaces.


STM32F429IGT6 Features

  • With 180MHz CPU, running up to 256KB SRAM and up to 2MB dual memory bank flash;
  • With SDRAM interface, Chrom-ART and LCD-TFT controller;
  • Cortex M4 core architecture provides enhanced input/output and peripherals, including serial audio interface (SAI), true random number generator (RNG) and RTC, DAC, ADC, 16-bit and 32-bit timers;
  • Power saving mode is designed for low power consumption applications;
  • With Ethernet MAC and camera interface for CMOS sensor;
  • Features a floating point unit (FPU) with digital signal processing (DSP) instructions and a memory protection unit (MPU) to improve application security;
  • Flexible memory controller and supports Compact Flash, SRAM, PSRAM, NOR and NAND and SDRAM memory;
  • Audio connection: dedicated audio PLL, I2S, serial audio interface (SAI);
  • Communication interface: USART, UART, SPI, I2C, CAN and SDIO.

STM32F429IGT6 Parameters

BrandST (STMicroelectronics)
Product Category32-bit MCU Microcontroller
Lead-FreeLead-Free / RoHS Compliant
Mounting TypeSMT (Surface Mount Technology)
Operating Temperature-40°C to +85°C
InterfacesCANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG
Part StatusActive
CPU CoreARM® Cortex®-M4
Core Size32-bit
Max CPU Frequency180MHz
I/O Ports140
Flash Program Space1MB
Program Space TypeFLASH
Operating Voltage Range1.8V to 3.6V
PeripheralsBrown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
RAM Capacity256 x 8KB
EEPROM CapacityNone
Dimensions (Length x Width)24.00 x 24.00mm
Original ManufacturerSTMicroelectronics
Supply Voltage1.8V to 3.6V

Application of STM32F429IGT6

STM32F429IGT6 is widely used in inverters, PLCs, scanners, HVAC, video intercoms, home audio equipment and medical equipment.
