About STM32F207 MCU

The STM32F207 is a microcontroller unit (MCU) from STMicroelectronics, designed for high-performance and low-power applications. It is based on the ARM Cortex-M3 core and offers a wide range of peripherals and communication interfaces. With its 32-bit architecture and clock speeds of up to 120 MHz, the STM32F207 provides efficient processing capabilities. It also features Flash memory, SRAM, and numerous I/O pins, making it suitable for various embedded applications such as industrial control systems, consumer electronics, and Internet of Things (IoT) devices.


  • Extreme running speed
  • More storage space
  • Excellent real-time performance
  • Lower dynamic power consumption
  • Real-time flash accelerator
  • Flexible static memory interface
  • Higher speed communication interface
  • True random number generator
  • Supports USB OTG in high-speed mode
  • Video sensor interface
  • More efficient fast DMA
  • Multifunctional RTC 32-bit timer
  • Used to expand off-chip memory and peripherals
  • Encryption/Hash Processor: 3DES, AES256/SHA-1, MD5, HMAC


The STM32F207VGT6 is based on the high-performance ARM Cortex-M3 32-bit microcontroller and operates at up to 120 MHz. The series integrates high-speed embedded memory (up to 1 MB of Flash, up to 128 Kb of system SRAM), up to 4 Kb of spare SRAM, and a wide range of enhanced I/O and peripherals connected to two APB buses, three AHB bus and a 32-bit multi-AHB bus matrix.


The devices also feature the Adaptive Real-Time Memory Accelerator (ART Accelerator), which allows performance equivalent to executing a 0 wait-state program from flash memory at CPU frequencies up to 120 MHz. This performance has been verified using the CoreMark® benchmark.

All devices provide three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers, including two PWM timers for motor control, and two general-purpose 32-bit timers. True Random Number Generator (RNG). They also feature standard and advanced communication interfaces. New advanced peripherals include SDIO, an enhanced Flexible Static Memory Control (FSMC) interface for devices available in 100-pin packages and above, and a camera interface for CMOS sensors. The device also has standard peripherals.

STM32F207VGT6 Parameters

Package TypeLQFP
Number of LIN Channels1
Number of Pins100
Number of I2C Channels2
Core ProcessorARM Cortex M3
Number of Timers17
Data Bus Width32-bit
Number of ADC Units3
Program Memory Size1 MB
Number of CAN Channels2
Maximum Frequency120 MHz
PWM Resolution12-bit
Memory Size128 kB
Minimum Operating Temperature-40°C
Number of USB Channels1
ADC Resolution12-bit
Number of PWM Units2
Maximum Ethernet Channels1
ADC Channels24
Timer Resolution16-bit, 32-bit
Number of SPI Channels3
ADC Units3 (24 x 12-bit)
Typical Operating Power Voltage3.6 V
Size14.2mm x 14.2mm x 1.45mm
Number of USART Channels4
Maximum Operating Temperature+85°C
Number of Ethernet Channels1
Pulse Width Modulation2 (12-bit)
Number of UART Channels2
Program Memory TypeFlash
Timers1 (IWDG), 1 (WWDG), 12 x 16-bit, 2 x 32-bit

STM32F207VGT6 Pinout

There’re four types of pinout configuration:
LQFP64, LQFP100, LQFP144 and LQFP176.

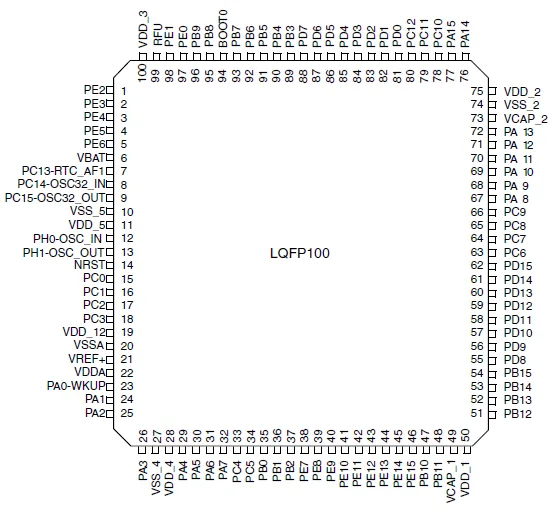

STM32F20x LQFP100 pinout
STM32F20x LQFP100 pinout
