ST Visual Programmer STM32

ST Visual Programmer (STVP) is an early download and programming tool developed by STMicroelectronics, supporting ST7, STM8, and STM32 series microcontrollers.

While this tool may be considered older compared to ST-LINK utility and STM32CubeProg, it is still in an ACTIVE state. In this article, we will provide details on how to use STVP.

What is ST Visual Programmer?

STVP offers a comprehensive flash programming environment for ST microcontrollers, enabling easy reading, writing, and verification of internal memory and option bytes.

Supported Debuggers/Programmers:

  • ST-Link
  • R-Link
  • STice
  • STick
  • ST7DVP3
  • ST-TSLink

Programming Modes (Protocols):

The programming mode depends on the debugger/programmer in use. For example, ST-Link supports:

  • JTAG
  • SWD
  • SWIM

How to Use ST Visual Programmer?

As STVP supports various debuggers/programmers, we will focus on the most commonly used one, ST-Link, to explain its usage. In this example, we will use an STM32F411 microcontroller.

STVP Download

Official Website:

STVP Installation

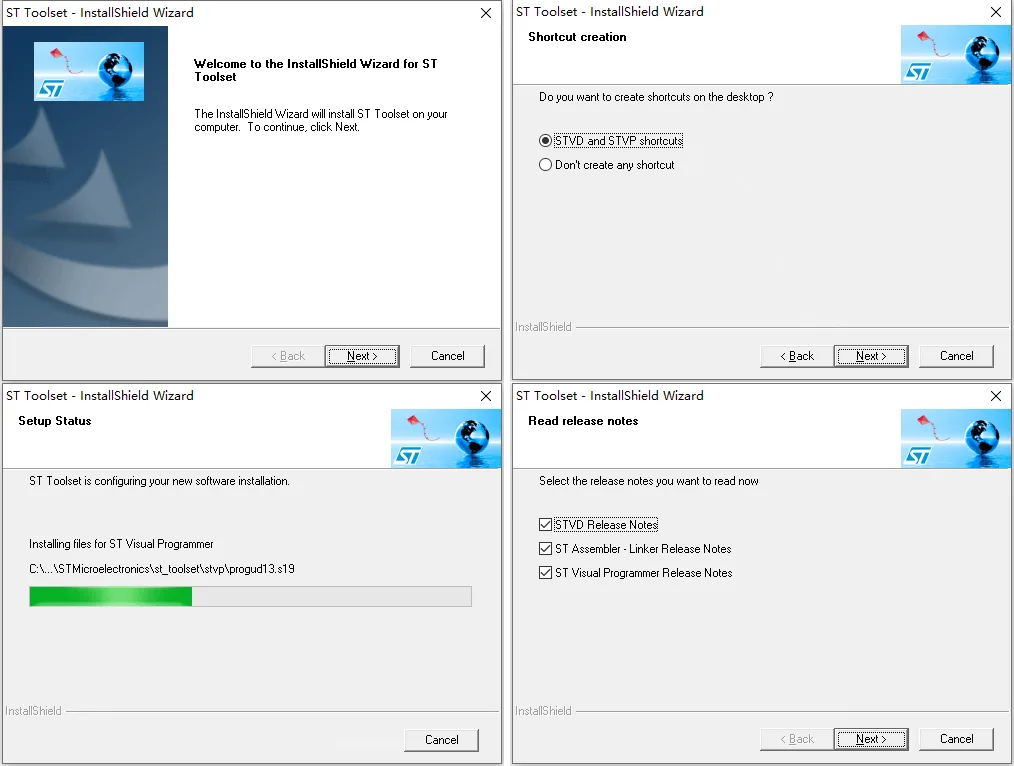

The downloaded sttoolset_pack42.exe includes both STVD (ST Visual Develop) and STVP (ST Visual Programmer) tools. You can choose one or both for installation.

ST Visual Programmer (STVP) Tool Installation
ST Visual Programmer (STVP) Tool Installation

STVP Configuration

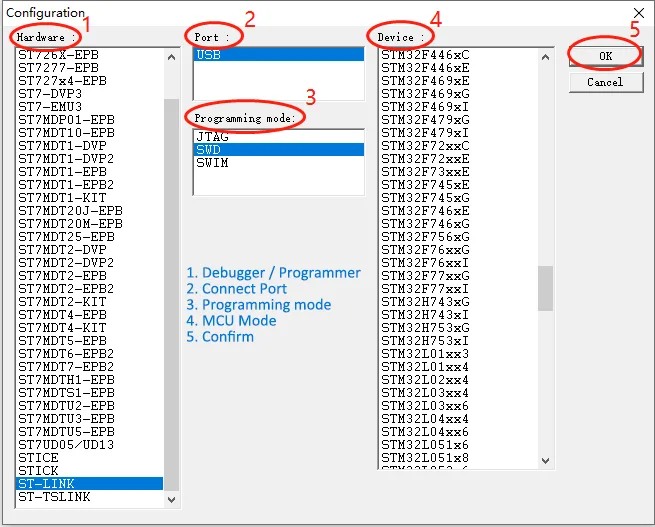

After opening the STVP software, go to the configuration window to select the debugger type, programming mode, and the target microcontroller.

ST Visual Programmer (STVP) Configuration
ST Visual Programmer (STVP) Configuration

STVP Uploading Files

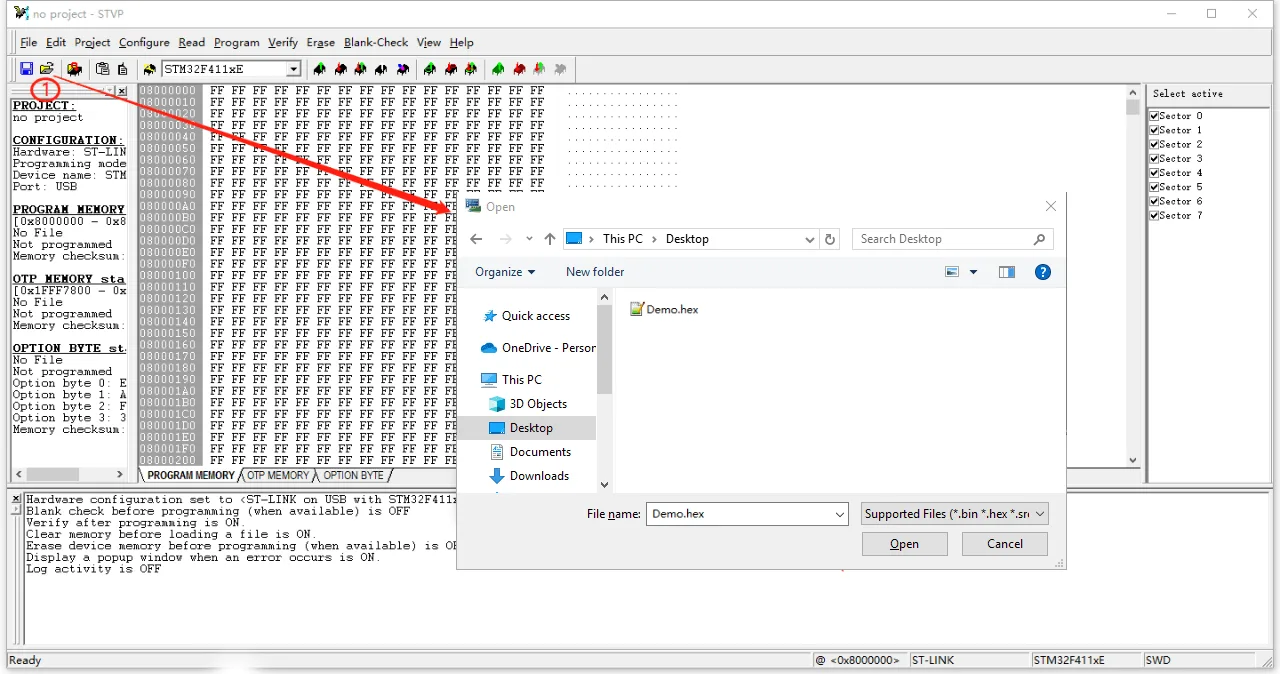

Before programming the MCU, we need to upload the file to the ST  Visual Programmer.

Upload the Files to ST Visual Programmer
Upload the Files to ST Visual Programmer

STVP Programming

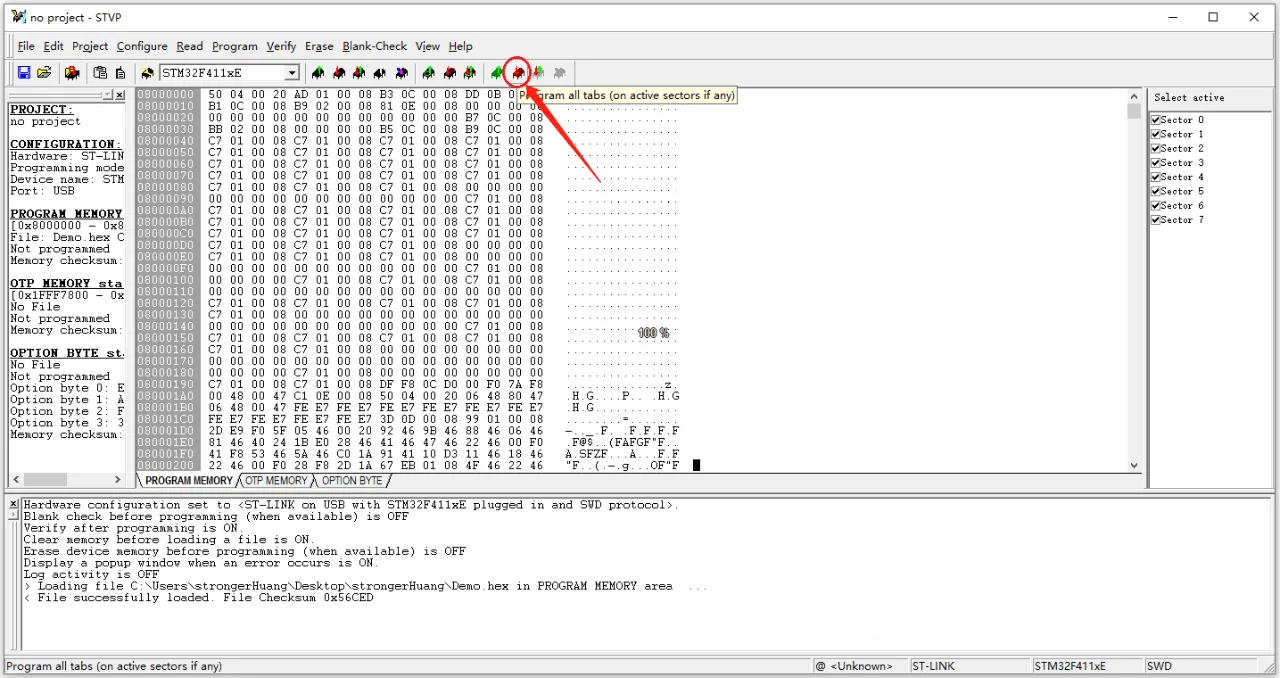

Prior to programming, ensure that your STM32 is connected to the ST-Link:

Start Programming the STM Chips
Start Programming the STM Chips

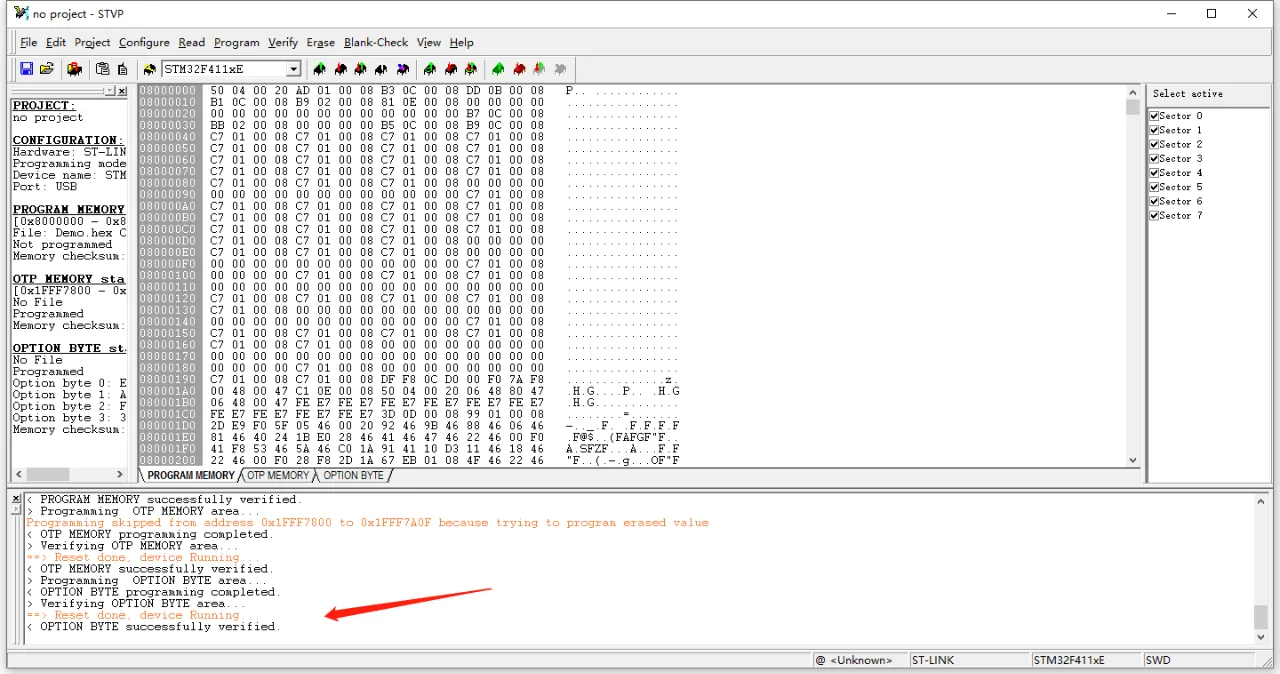

Programming Completed
Programming Completed

STVP Erasing

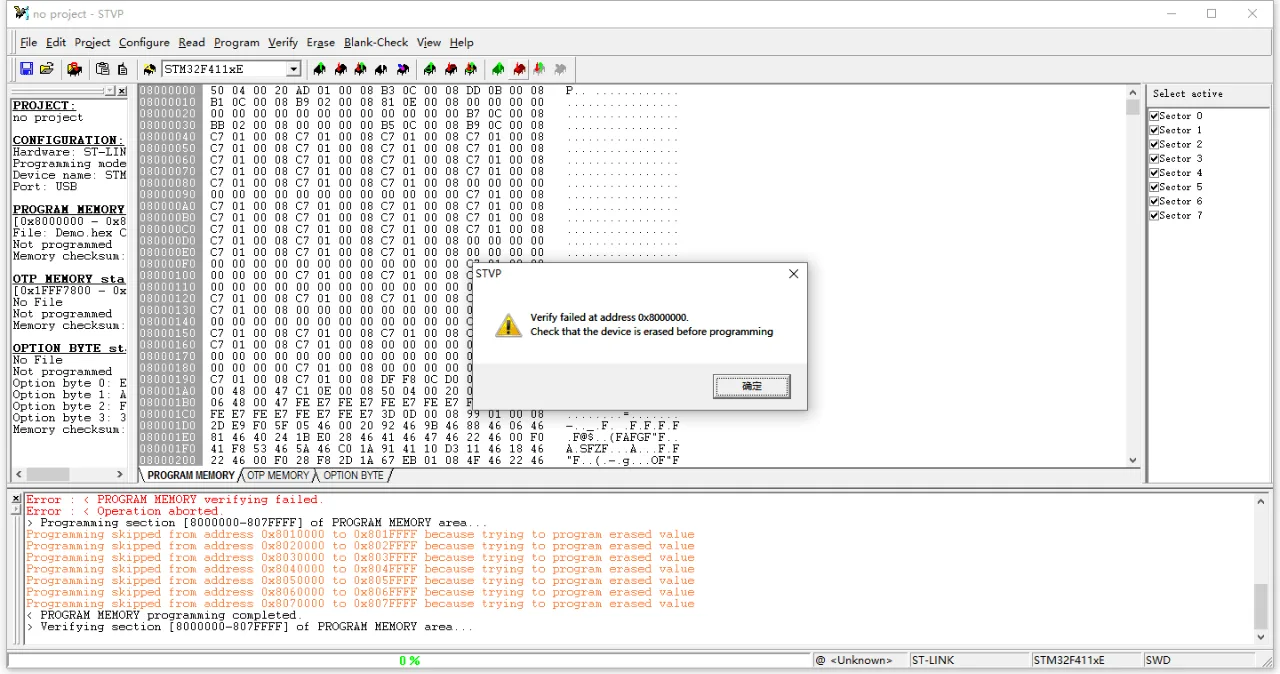

During the programming process, you may encounter issues like write protection or lack of erasure. If programming or verification fails, check if the device needs erasing.

Fail to Programming (Verify failed)
Fail to Programming (Verify failed)

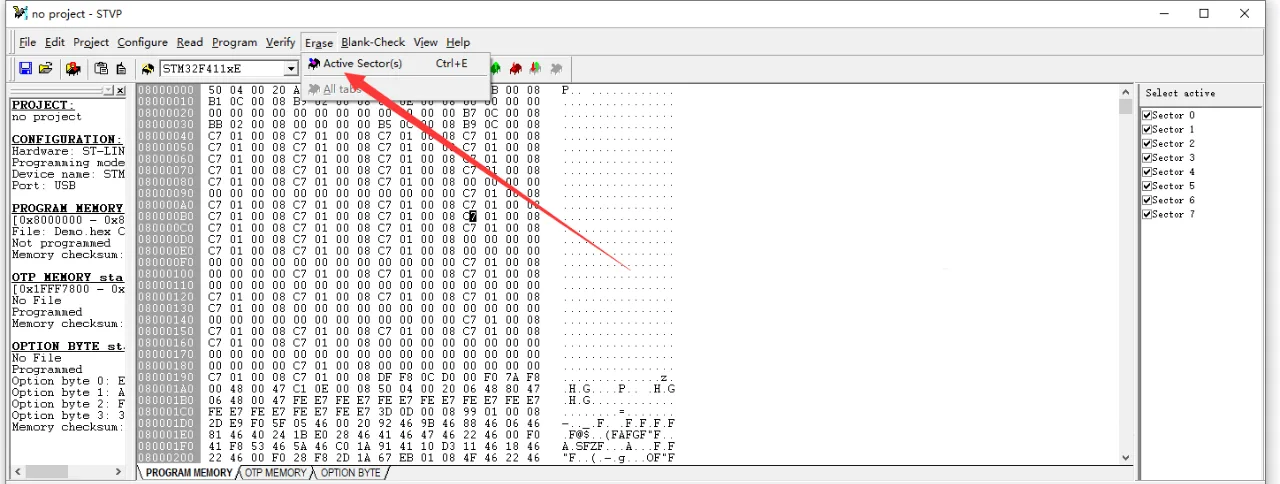

Select the sector to erase:

Erase the MCU Sectors
Erase the MCU Sectors

STVP Reading Flash

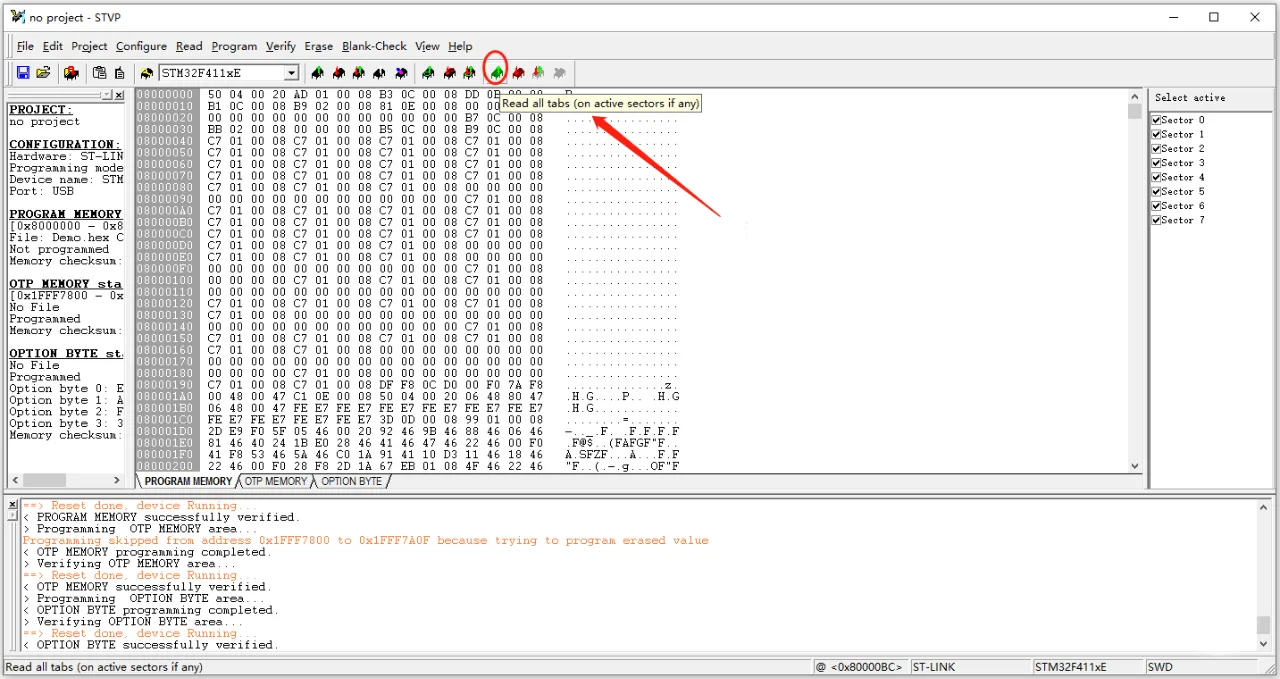

Sometimes, you may need to read the internal Flash memory of the microcontroller. You can use this tool to read and save it as a bin or hex file (provided that there is no read protection).

Read the MCU Flash
Read the MCU Flash

STVP Modifying Option Bytes

Some option bytes can be modified using programming tools, such as read/write protection settings:

Change the Option Byte of STVP
Change the Option Byte of STVP
