Designing a Rigid-Flex PCB for Reliable Dynamic Interconnects
A rigid-flex PCB combines component-bearing rigid sections with integral flexible layers, eliminating connectors and separate cable assemblies where space, mass, or vibration makes them unreliable. In a flexible drive-by-wire architecture, that integration can simplify sensor and actuator interconnects, but it does not remove mechanical or functional-safety requirements. The design must distinguish a flex-to-install bend from repeated dynamic motion, because copper construction, bend radius, layer count, and strain limits differ substantially.
- Model the mechanics: define bend axis, installation sequence, motion cycles, minimum radius, enclosure contact, and neutral bend region.
- Shape the transition: use smooth outlines, staggered layer terminations, teardrops, and strain relief without sharp corners.
- Route for flexing: keep traces perpendicular to the bend, distribute conductors evenly, and avoid vias in moving areas.
- Specify the stack: document rolled or electrodeposited copper, adhesiveless materials, coverlay, stiffeners, impedance, and finished thickness.
- Qualify the assembly: inspect registration and plating, then test bending, vibration, temperature cycling, continuity, and signal integrity.
Unleashing The Power Of Rigid-Flex PCB
Explore the "hybrid genius" technology that merges the robustness of rigid circuits with the adaptability of flexible ones, driving the innovation of next-generation electronics.
Start Exploring ↓Core Concepts: What is a Rigid-Flex PCB?

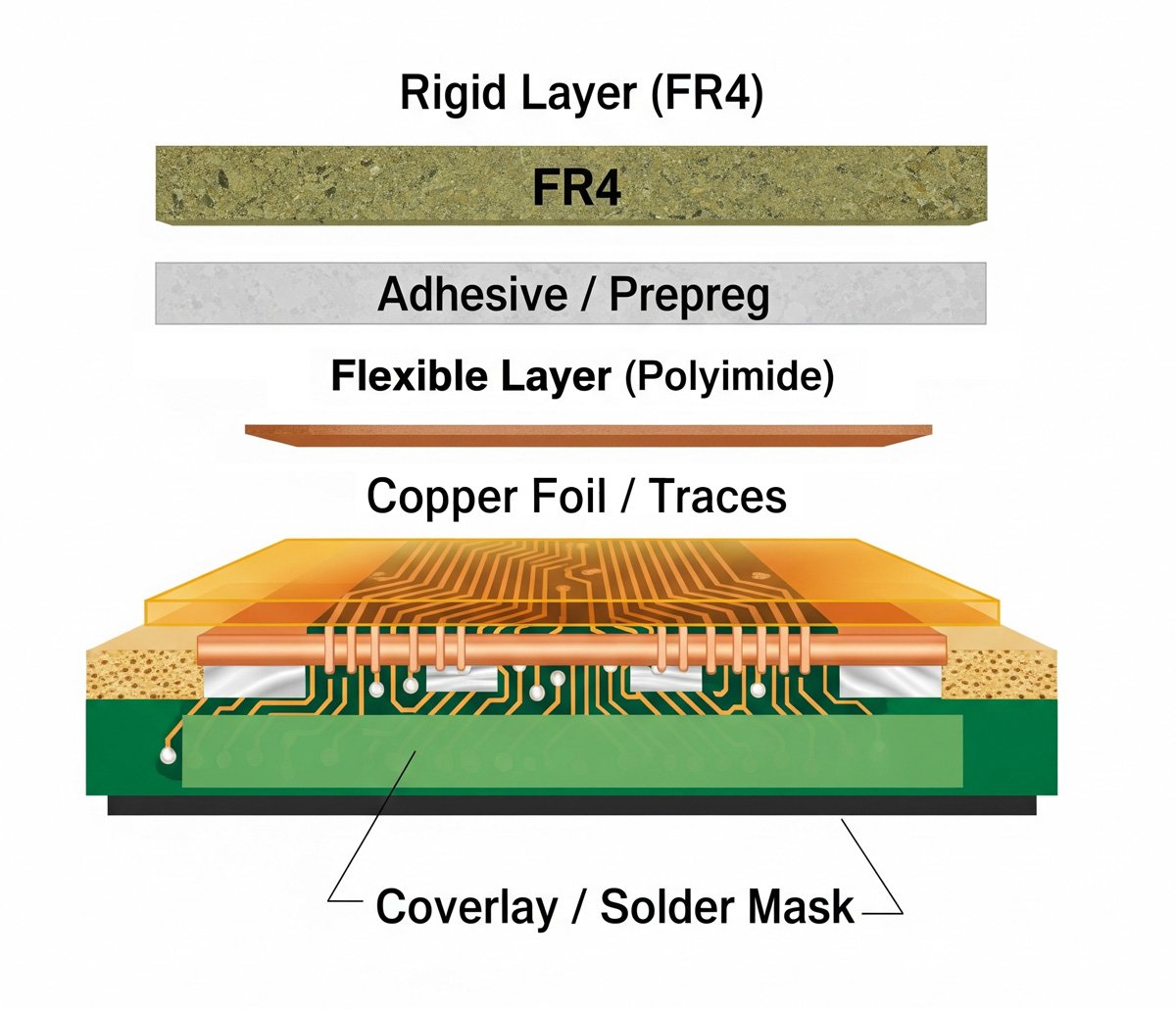

A Rigid-Flex PCB is a revolutionary combination of rigid and flexible printed circuit boards. This innovative technology merges the best of both worlds, offering the stability and durability of rigid PCBs with the flexibility and adaptability of flexible PCBs. The rigid sections are typically made from materials like fiberglass-reinforced epoxy (FR4), which provide a sturdy base for mounting components. These parts are excellent for supporting larger and heavier components, ensuring they remain firmly in place.
On the other hand, the flexible parts are crafted from materials such as polyimide or polyester films. These materials allow the PCB to bend, twist, and conform to various shapes and spaces, similar to how a flexible wire can be bent into different configurations. This flexibility enables designers to create more compact and complex electronic devices.
The true value of Rigid-Flex PCBs lies in their synergy—they solve design challenges that traditional rigid or flexible boards cannot address alone. This section delves into their basic composition and core advantages.
