Unlocking the STM32F4 family of microcontrollers

About STM32f4 Microcontrollers

STM32f4 microcontrollers are 32-bit ARM Cortex-M4 microcontrollers made by STMicroelectronics. They are designed to be low-power, high-performance devices that offer a wide range of features, including a wide range of peripherals, a high-speed clock, multiple communication interfaces, and a variety of power management options.

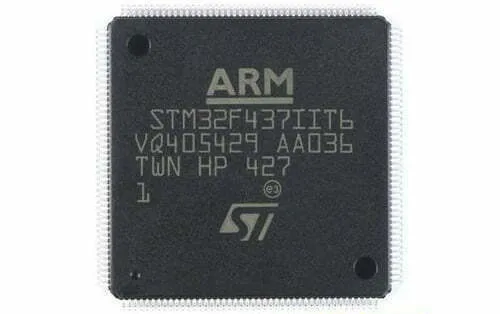

STM32F437
STM32F437

Features

  • ARM Cortex-M4 core with a Floating point unit (FPU);
  • Low-power modes;
  • CRC calculation unit;
  • Analog-to-Digital converter;
  • Digital-to-Analog converter;
  • Clock, reset and power management;
  • Debug mode;
  • DMA controller;
  • CAN interface;
  • Ethernet MAC interface with IEEE 1588 support;
  • Camera interface;
  • LCD-TFT controller;
  • Cryptographic acceleration.

Performance Parameter

  • 180 MHz Cortex-M4 32-bit RISC core;
  • Up to 256 Kbytes of Flash memory;
  • Up to 17 timers;
  • Up to 12 communication interfaces;
  • Up to 12 PWM outputs;
  • Up to 4 DMA controllers;
  • Up to 100 I/Os;
  • Up to 4 ADCs and 4 DACs;
  • Up to 192 Kbytes of SRAM;
  • Clock, reset and supply management;
  • 12-bit ADC;
  • Up to 3 SPI interfaces;
  • Up to 3 USART interfaces;
  • Up to 2 I2C interfaces;
  • 2 x USB 2.0 OTG interfaces.

Supported STM32f4 Series Models

Below are all models of STM32f4 series that we can help you do unlocking:
