What is "Antenna Height Gain"?
Have you ever noticed that raising an antenna just a few feet can dramatically improve performance? This improvement is often called "Antenna Height Gain." However, this term can be misleading. It's not a property of the antenna itself, like its dBi rating. Instead, it's an improvement in your entire radio system's performance due to the antenna's superior position.
In short, a higher antenna can "see" further and clearer, overcoming obstacles like buildings, trees, and even the curvature of the Earth. This guide will walk you through the core principles and let you explore the effects yourself with interactive tools.
The Core Principles
1. Extending the Radio Horizon

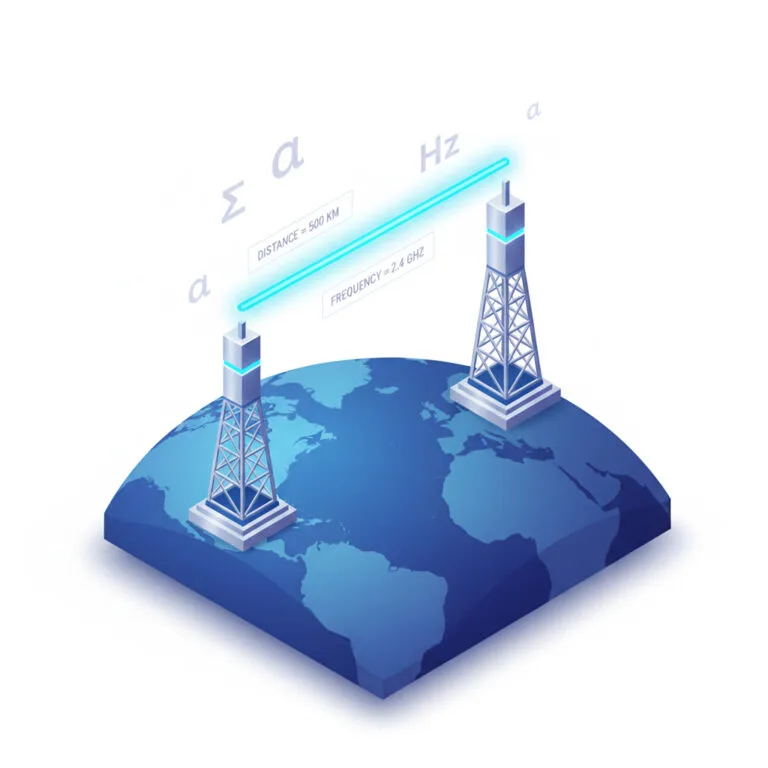

For most high-frequency signals (like Wi-Fi, FM radio, or 5G), the connection relies on a direct line of sight. The "Radio Horizon" is the maximum distance a signal can travel before being blocked by the Earth's curve. Raising your antenna is like standing on a hill—it lets you see further, dramatically increasing your potential communication range.
Radio Horizon Calculator
(Obstructed)
(Clear Path)
2. Clearing the Fresnel Zone
A radio signal doesn't travel in a pencil-thin line. It occupies a football-shaped space called the "Fresnel Zone." For the strongest signal, this zone must be mostly free from obstructions. Even if you have a direct line of sight, an object poking into the Fresnel Zone can weaken or reflect your signal. Raising your antenna is the most effective way to lift the entire Fresnel Zone up and over obstacles.
A common rule of thumb is to have at least 60% of the Fresnel Zone's radius clear of any blockage.
Interactive Path Gain Simulator
See the effect of antenna height for yourself. This chart simulates how signal strength ("Path Gain") improves as you raise antennas over a fixed distance. A higher value is better. Drag the sliders to see how height impacts the signal path.
Resulting Path Gain
-120 dB(Less negative is better)
Frequently Asked Questions
Is a higher gain antenna better than a physically higher antenna?
For long-distance communication where line-of-sight is a factor (VHF, UHF, microwave), increasing antenna height is almost always more beneficial than increasing antenna gain. Height solves the fundamental problem of obstruction and Earth curvature. A high-gain antenna can't help if the signal is being blocked. First, achieve height, then consider a higher gain antenna to focus that now-clear signal.
How much gain in dB do I get for doubling my antenna height?
Theoretically, over a flat plane, doubling the height of both antennas reduces the path loss by 6 dB, which is equivalent to a 6 dB gain. Doubling the height of only one antenna provides a 3 dB improvement. However, in the real world, the primary benefit comes from clearing obstructions, which can result in a much more dramatic improvement far exceeding the theoretical 6 dB.
Does antenna height matter for shortwave (HF) radio?
It depends. For long-distance HF communication that relies on bouncing signals off the ionosphere (skywave), height is less critical. The main goal is getting the antenna in the clear and achieving the right radiation angle. However, for local, line-of-sight HF communication (groundwave), height is still very important, just as it is for VHF/UHF.
