Link-Budget-Rechner

Berechnen Sie die empfangene Leistung und die Verbindungsreserve mit unserem interaktiven Link-Budget-Tool. Berücksichtigen Sie dabei die Sende-/Empfangsleistung, Antennengewinne und den Freiraumdämpfungsverlust (FSPL) in dB.

Units: dBm (decibels relative to 1 milliwatt)

Units: GHz (gigahertz)

Units: dBi (decibels relative to isotropic radiator)

Units: dBi (decibels relative to isotropic radiator)

Units: km (kilometers)

Units: dBm (decibels relative to 1 milliwatt)

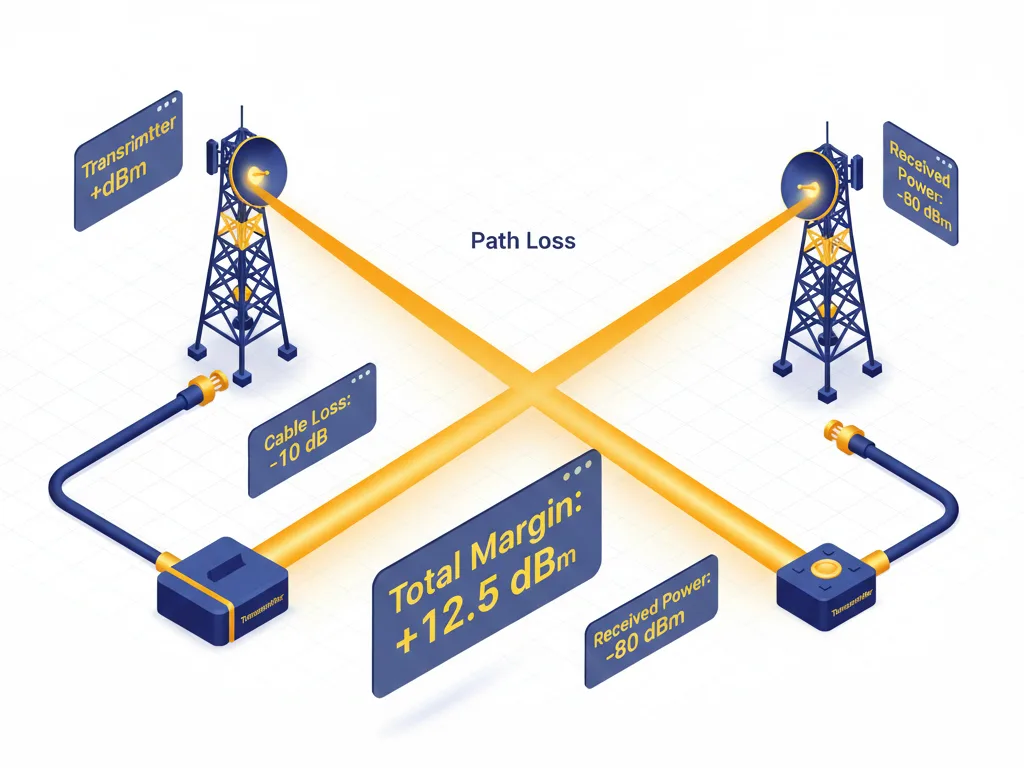

What is a Link Budget?

A link budget is an essential calculation in telecommunications that accounts for all the gains (power) and losses in a communication link from the transmitter to the receiver. It helps professionals predict the performance of a system, ensuring the received signal is strong enough to be detected reliably. This is crucial for designing everything from Wi-Fi networks and cellular systems to satellite communication links.

Key Components of the Calculation

Understanding these components is vital for accurate link budget planning. They represent all the factors that impact signal strength along the path.

Transmitter Power (Ptx)

The power output from the transmitter, measured in decibels relative to one milliwatt (dBm).

Antenna Gains (Gtx, Grx)

The measure of how effectively an antenna can focus energy in a specific direction. Measured in decibels relative to an isotropic radiator (dBi) for both the transmitting (Gtx) and receiving (Grx) antennas.

Path Loss (Lpath)

The loss of signal power as it travels through a medium, typically free space. Free-space path loss (FSPL) is a key factor here, which is dependent on distance and frequency.

Receiver Sensitivity (Srx)

The minimum signal power the receiver needs to reliably decode information. Measured in dBm.

The Link Budget Formula

The core calculation determines the received signal power and compares it to the receiver's sensitivity to find the link margin. A positive link margin indicates a robust, viable link.

Received Power Formula:

$$ P_{rx} = P_{tx} + G_{tx} + G_{rx} - L_{path} $$

Where \( P_{rx} \) is the received power in dBm

Link Margin Formula:

$$ \text{Link Margin} = P_{rx} - S_{rx} = P_{tx} + G_{tx} + G_{rx} - L_{path} - S_{rx} $$

A positive margin indicates a feasible link

Free Space Path Loss (FSPL) Formula:

$$ L_{path} = 20 \log_{10}(d) + 20 \log_{10}(f) + 92.45 $$

Where d is in km and f is in GHz

Real-World Applications

Link budgets are not just theoretical; they are a fundamental part of designing and troubleshooting real-world communication systems. Here's how they are used:

  • Satellite Communication: Engineers use link budgets to determine the size of satellite dishes and the required transmitter power for a reliable signal, accounting for the vast distances involved.
  • Wi-Fi Network Design: By calculating the link budget for a router and a device, network administrators can ensure sufficient signal strength to cover an entire building and identify potential dead zones.
  • Cellular Networks: Telecom providers use link budgets to plan the placement of cell towers, ensuring seamless coverage for mobile users in a given area.

FAQs & Troubleshooting

Q: What is a good link margin?

A: A positive link margin is good, but for reliable communication, a margin of 6 dB or more is generally recommended to account for unpredictable factors like weather and interference.

Q: Why does my link budget calculation show a negative value?

A: A negative link margin means the received signal is weaker than the receiver's sensitivity, and the link will likely fail. You need to adjust parameters like increasing transmitter power, using higher gain antennas, or reducing the distance.

Q: How can I improve my link budget?

A: The most common ways to improve a link budget are to increase transmit power, use higher gain antennas, and decrease the distance between the transmitter and receiver.

Comparison with Other Calculators

While a link budget calculator is comprehensive, it's important to understand how it differs from other tools. A Path Loss Calculator only focuses on the signal attenuation due to distance and frequency, whereas a link budget calculator considers the entire system, including gains and losses. Similarly, a Signal-to-Noise Ratio (SNR) Calculator evaluates the quality of the signal relative to background noise, which is a component of a more detailed link analysis.

Advanced Topics

For professionals, link budget analysis can involve more complex considerations, such as using advanced path loss models like the Okumura-Hata model for urban environments, or accounting for multipath fading in complex terrain. These factors are crucial for achieving a highly accurate prediction of system performance in real-world scenarios.
